Holographic Shrink Sleeves
Shrink sleeves provide a tamper evident seal for bottles, jugs or other container spouts.
The sleeve is a hollow tube of clear PVC film. When heat is applied, the sleeve will shrink and conform to the contours of the bottle neck and cap, thereby making it impossible to open the bottle without destroying the sleeve.
Before Heat is Applied
After Heat is Applied
To aid in removing, some shrink sleeves have perforatons. A holographic stripe provides added security to authenticate the tamper evident seal. Shrink sleeves are available in stock pre-cut lengths or in continuous rolls.
Installation Tips
Low volume applications:
- The tube is cut to length and placed over the neck of the bottle.

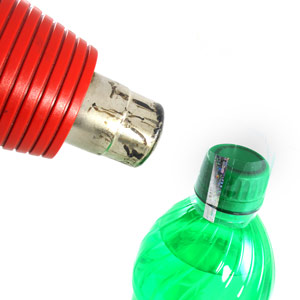

- Sleeves may be applied manually to the bottle neck. Then shrink to fit using a heat gun or steam tool.
- Hold the sleeve in place while applying heat. Without holding the sleeve, the sleeve will 'ride up' the bottle neck as it begins to shrink.
- If using a heat gun, apply heat on the side away from the hologram. Applying heat directly to the location of the hologram will cause the PVC to shink more in this area, which will distort the hologram image to a dull silver.
For higher volume applications, automated equipment is used to cut and apply the sleeve to the bottle, which then passes through a heat tunnel to shrink the sleeve.
Intended Use of Holograms
Our holograms are designed, tested, and intended for anti-counterfeiting, anti-tampering and promotional applications.
Our holographic products do NOT provide any documented health or medical benefits such as improved balance, sleep, pain-relief, weight loss, smoking cessation, etc.
Our holographic products do NOT provide any documented benefits to improve gas mileage, energy efficiency, cell phone reception, etc.
Our holographic products cannot be programmed to resonate at specific frequencies.
In our opinion, claims of medical benefits or improved machine performance are questionable and scientifically unsupported. Consumers should request an independent study (with blind testing) to verify any such claims and benefits.
We are not aware of any independent studies which validate such claims and benefits. Therefore, we will not intentionally produce holograms for these applications.
Stock Holographic Shrink Sleeves
Stock Shrink Sleeve, 2 in x 1.3 in, Pre-cut to Length, with perforation, Bag of 200 Seals, J-HS1-2.0
3D View
Layflat View
The pre-cut holographic shrink sleeves are used for low volume applications where the shrink sleeves are applied manually with a heat gun.
- Suitable for bottle cap diameters ranging from .75 inch to 1.0 inch
- Layflat dimension: 2 inch
- Precut length: 1.3 inch
- Perforation to aid in removing
Sold in Bags of 200 seals
Code: J-HS1-2.0
| Pricing Information | |||
|---|---|---|---|
| Quantity | $/Seal | $/Bag | Total |
| 1 | $0.15 | $30 | $30 |
| 5 | $0.10 | $20 | $100 |
| 10 | $0.08 | $16 | $160 |
| 20 | Call | Call | Call |
Stock Shrink Sleeve, 2 in x 1.3 in, Pre-cut to Length, No Perforations, Bag of 200 Seals, J-HS5-2.0

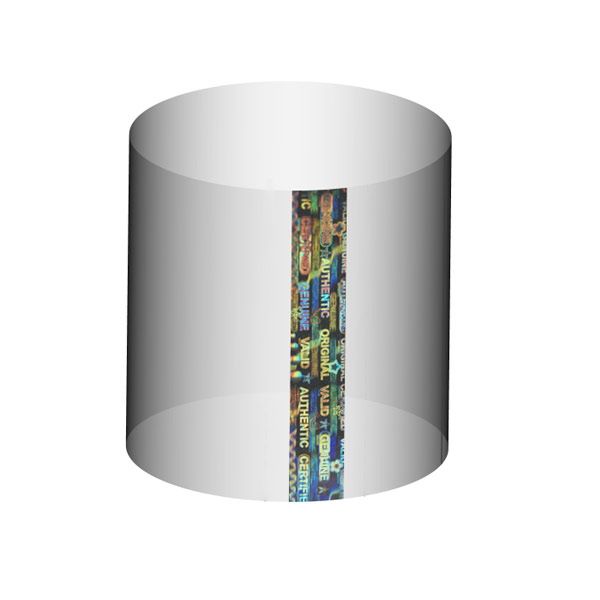

3D View

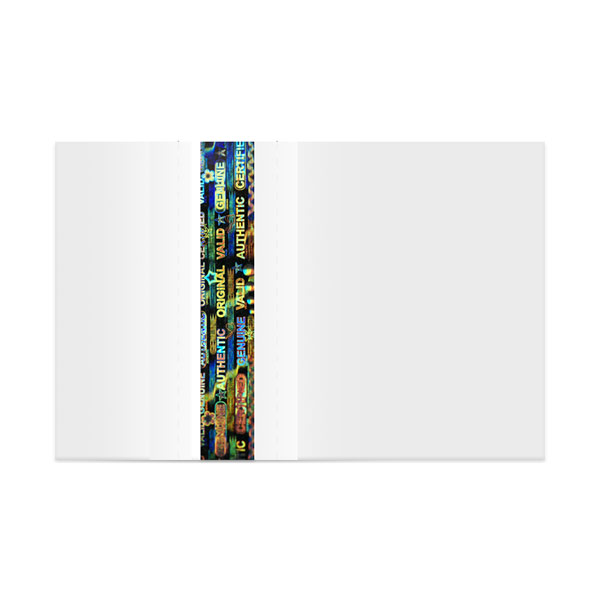

Layflat View
The pre-cut holographic shrink sleeves are used for low volume applications where the shrink sleeves are applied manually with a heat gun.
- Suitable for bottle cap diameters ranging from .75 inch to 1.0 inch
- Layflat dimension: 2 inch
- Precut length: 1.3 inch
- Is NOT Perforated
Sold in Bags of 200 seals
Code: J-HS5-2.0
| Pricing Information | |||
|---|---|---|---|
| Quantity | $/Seal | $/Bag | Total |
| 1 | $0.15 | $30 | $30 |
| 5 | $0.10 | $20 | $100 |
| 10 | $0.08 | $16 | $160 |
| 20 | Call | Call | Call |
Stock Shrink Sleeve, 2.1875 in x 1.0625 in, Pre-cut to Length, No Perforations, Bag of 200 Seals, J-HS3-2.1875
3D View

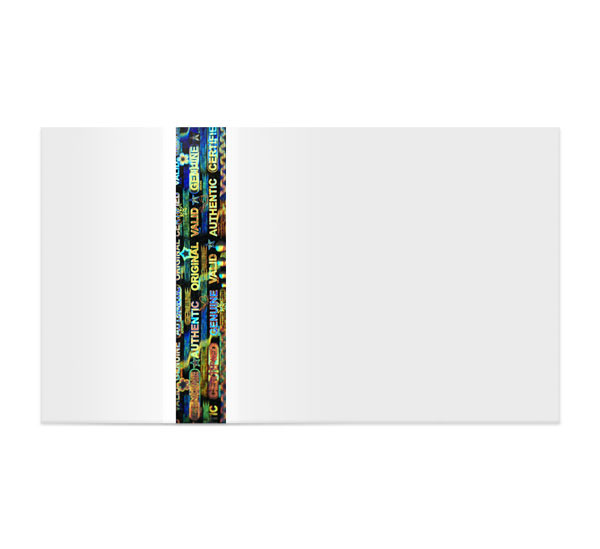

Layflat View
The pre-cut holographic shrink sleeves are used for low volume applications where the shrink sleeves are applied manually with a heat gun.
- Suitable for bottle cap diameters ranging from .80 inch to 1.1 inch
- Layflat dimension: 2.1875 inch
- Precut length: 1.0625 inch
- Is NOT Perforated
Sold in Bags of 200 seals
Code: J-HS3-2.1875
| Pricing Information | |||
|---|---|---|---|
| Quantity | $/Seal | $/Bag | Total |
| 1 | $0.15 | $30 | $30 |
| 5 | $0.10 | $20 | $100 |
| 10 | $0.08 | $16 | $160 |
| 20 | Call | Call | Call |
Stock Shrink Sleeve, 3.6 in x 1.0 in, Pre-cut to Length, with perforations, Bundle of 200 Seals, J-HS4-3.6

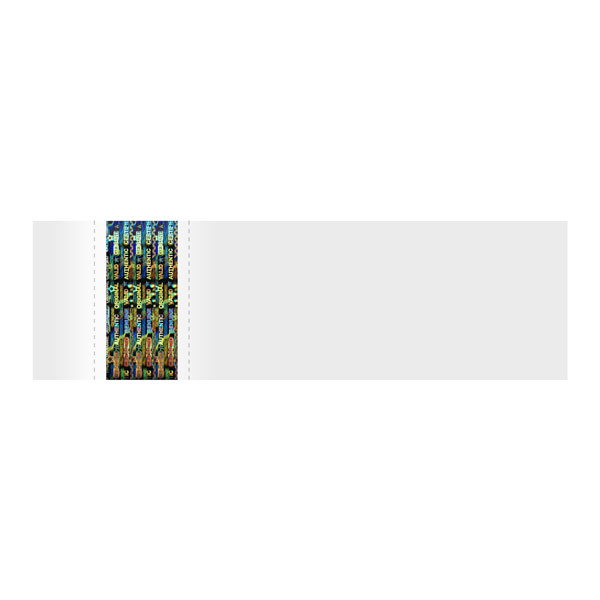

Layflat View
The pre-cut holographic shrink sleeves are used for low volume applications where the shrink sleeves are applied manually with a heat gun.
- Suitable for bottle cap diameters ranging from 1.35 inch to 1.8 inch
- Layflat dimension: 3.6 inch
- Precut length: 1.0 inch
- Is Perforated
Sold in Bundle of 200 seals
Code: J-HS4-3.6
| Pricing Information | |||
|---|---|---|---|
| Quantity | $/Seal | $/Bag | Total |
| 1 | $0.15 | $30 | $30 |
| 5 | $0.10 | $20 | $100 |
| 10 | $0.08 | $16 | $160 |
| 20 | Call | Call | Call |
Stock Shrink Sleeve, with perforation, 2 in x 650 Foot, Continuous Roll, J-HS2-2.0
The continuous roll of holographic shrink sleeves are more commonly used for high volume applications where the shrink sleeves will be applied by automated equipment.
- Suitable for bottle cap diameters ranging from .75 in to 1.0 in
- Layflat Dimension: 2 in
- Roll Length: 650 feet
- Perforation to aid in removing
Sold in 650 Foot Rolls
Code: J-HS2-2.0
| Pricing Information | ||
|---|---|---|
| Quantity | $/Roll | Total |
| 1 | $99 | $99 |
| 5 | $95 | $475 |
| 10 | $90 | $900 |
| 20 | Call | Call |
Custom Holographic Shrink Sleeves Options
Sorry, but there are no options for customizations.
|
