Secure-ID Security Labels

Product Overview

Our premium Secure-ID labels provide several unique features:

  1. Shows tamper evidence for multiple issues:
    • Removing the label from the surface – fully reveals the hidden message
    • Cutting the label – reveals a silver cut line on both ends of the label where cut
    • Scratching (or creasing) the label – reveals the hidden message when scratched
    • Delaminating the factory-applied clear film – fully reveals the hidden message

    Gold Security Label Before Removal

    Gold Security Label After Removal

  2. Excellent Non Residue Performance – shows tamper evidence without leaving a messy adhesive residue on the surface and is compatible with most surfaces and varying temperatures.
  3. Distinctive Metallic Finish - The Secure-ID labels have a distinctive metallic finish which serves as an anti-counterfeiting and authentication feature. We are the only manufacturer in the world for this unique label.
  4. Long Life Background Colors - The standard background colors are blue, magenta, green and gold are guaranteed to be fade-proof for at least 10 years. The colors are NOT printed – they are diffracted from white light. Theoretically, the color will last for decades.
  5. Long Life Tamper Evident feature – the hidden "VOID OPENED" pattern is created using a unique "optically thin film" construction, which maintains it's functionality for decades.
  6. Compatible with Cold Applications – the label can be applied at temperatures as low as +10°F. After application, the label will show tampering over a wide temperature range (-40°F to over +200°F)

Our stock Secure-ID labels have a pre-assigned unique serial number printed in black ink. For added security, Secure -ID labels can be imprinted with your custom text, logo, or serial number in black ink or other optional ink colors.

Gold Security Label Security Label with Black Serial Numbers

Gold Security Label Security Label with Custom Text

Our Secure-ID labels are designed to show signs of tamper evidence immediately when removed from the applied surface. Unlike some competitive products, there is no waiting period for the tamper evidence feature to become operable.

Once activated, the hidden tamper evident message is permanent, which prevents unauthorized re-use of the tampered label.

The stock hidden pattern OPENED VOID varies by label. The graphics for the release pattern "OPENED VOID" feature shown is a fair representation. However, the actual graphic may vary by size, orientation, alternating forward and backwards reading, backwards reading, upside down, include upper and lower case, font, etc.

These non-residue security labels are compatible with most non-porous surfaces such as metal, glass, wood, plastic, etc. Painted and varnished surfaces are also acceptable, however if the varnish/painted surface is not fully bonded, the finish may be removed with the label.

The acrylic adhesive leaves no residue for at least 90 days after application to the surface. If the Secure-ID label is applied longer than 90 days, a minimal amount of adhesive residue may remain on some surfaces. However, any minimal residue can be easily cleaned with a citrus-based household cleaner (Goo-gone, Orange Sol, etc).

For the customized imprint, our standard process is to print custom text, logos and serial numbers on the surface of the label using thermal transfer resin ribbons. The thermal inks are durable to mechanical abrasion, scratching and most liquids and are suitable for most applications. However, thermal printed inks can be removed with certain solvents such as gasoline, alcohol, or lotions containing alcohol.

Free samples of the Security-ID labels are available for testing. We recommend you test for the specific application before ordering.

We also offer optional custom sizes and custom hidden tamper evident messages.

Tamper evident security labels are often used to detect tampering with objects containing valuables, confidential information, or calibration/equipment settings. Typical applications include file cabinets, aircraft hatches, entry doors, envelopes, cartons, electronic components, ballot boxes, voting machines, etc.

Because the Secure-ID label contains an inner layer of aluminum which is conductive, it may not be suitable for electrical applications where the label is in direct contact with circuitry.

Choosing a Non Residue Label

Recommended Surfaces:

  • Bare metal (may leave a residue after 1 week)
  • Glass (may leave a residue after 1 day)
  • PVC (may leave a residue after 1 day)
  • Painted metal
  • Painted & varnished wood*
  • Most smooth plastic
  • Most non-porous surfaces*
  • Indoor and outdoor applications

We recommend our Secure-Guard Plus Security Labels in these conditions:

  • The label will be affixed to the surface for an extended time (up to 1 year)
  • The surface is textured plastic or another low energy surface

Typical Applications:

  • Windows
  • Doors
  • Block Mobile Phone Camera Lens
  • Ballot Boxes
  • Files and Cabinets
  • Aircraft: Metal Hatches and Doors
  • Access Panel for Calibration Settings
  • Retail Gasoline Dispenser Hatch & Doors

The label film is receptive to marking using an ink pen or permanent marker. This allows additional customizations such as a hand-written serial number, date, file number, contents label, personal signature, etc.

The blue, red and green colors are translucent, so printed information under the label is also visible.

Secure-Guard products are offered in 3 versions:

1. Stock Non Residue Labels

Stock Secure-Guard labels have a pre-assigned unique serial number for added security.

Stock labels are only available in red and with a black imprint.

Offered in rolls of 250 or 1000, stock labels are the most affordable for small quantity projects. Quantity discounts apply to orders of 3,000 labels or more.

The stock labels are available for immediate shipment -- ideal for RUSH projects.

Security Labels
Red Stock Security Label with Black Serial Numbers

2. Custom Imprinted Non Residue Labels

A custom imprint adds security. Secure-Guard labels can be imprinted with your custom text, logo, or serial number in black ink or other optional ink color (green, blue, red, or white).

Custom imprinted labels are available in 4 background colors (red, blue, green & black) which along with the optional ink colors provide a means for color coding.

Security Labels
Blue Security Labels with Custom Logo in Black Ink

Bar codes imprinted (with black ink) directly on the red material are readable and will verify at a 'C' grade. However, bar codes printed directly on the blue, green or black material do not read well.

If a higher bar code grade is needed, choose one of the labels (SSG21-48RE, SSG21-48BL, SSG21-48GN, SSG21-48K) with the white panel.

The custom imprint and/or serial number is printed on the label surface. Although the imprint is durable for most applications, we also offer and recommend optional laminated labels to fully protect the custom imprint from excessive handling, wear or chemical exposure (alcohol in sun screen and hand lotion or any petroleum-based chemicals, such as gasoline). Typical applications for laminated labels are:

  • ID Badges and Credentials
  • Season passes (water parks, beaches, ski resorts)
  • Hand-held devices (cell phones, tablets, computers, etc)
  • Equipment asset labels
  • Collectibles subject to handling
  • Outdoor applications over 1 year

Please call if you need pricing for laminated labels.

Some labels feature a center perforation designed for applications with a hinged door. The center perforation will break when the door is opened, for added security.

Security Labels
Red Security Labels with Center Perforations

3. Custom Size & Imprinted Seals

SecureGuard material is also available in 2 inch widths and cut to your custom length. Lengths may range from 0.25 inch to 39.0 inches.

Custom length material is available in red or blue background color. The stock imprint color is black, but we offer optional imprint colors too.

Limitations of Non Residue Labels

After application to the recommended surfaces, the adhesive systems are intended to leave no residue for about 90 days.

In some conditions, the non residue feature may be impaired. In these cases, when removed, the label will still show the OPENED VOID message in the film, but the label may leave an adhesive residue on the surface. Such conditions include:

  • Application to some high energy surfaces (glass, PVC, polycarbonate, plexiglas, etc) the non residue feature may only function for 1 day, then the label will revert to leaving a residue.
  • If the label is applied longer than 90 days, some adhesive residue may remain on the affixed surface.
  • After affixing to the surface, temperatures over 120F or less than 30F may cause the label to leave adhesive residue when removed.

To minimize adhesive residue on the surface, remove the label using a 180 degree peel angle.

In the event there is adhesive residue, it can be cleaned with a citrus-based household cleaner (Goo-gone, Orange Sol, etc) or iso-propyl alcohol (recommended 90% minimum alcohol).

Warning to Counterfeiters

If NovaVision is requested to produce custom security products or branded packaging, we require proof to substantiate that you are authorized to purchase that product. We independently verify your contact information and legitimacy. If you are not authorized to purchase the product, your contact information may be provided to law enforcement authorities without further notice. NovaVision cooperates with all local, state, federal and international law enforcement agencies to catch and prosecute fraudulent purchases and counterfeiting.

Counterfeiting is illegal and is defined as any attempt to copy an original with the intent to defraud. It is illegal to purchase a fake identification product, an unauthorized custom hologram, an unauthorized duplicate security label, or counterfeit packaging which uses a copyrighted brand name or logo. Further, in the USA, legislation is pending to expand the criminal law so that federal prosecutors will have an easier time prosecuting counterfeiters that manufacture bogus product labels and packaging.

Learn More

Specifications and Intended Use

Please see the Specifications and Intended Use for more details.

Troubleshooting Guide

If the tamper evident feature is not working to your satisfaction, please review the Security Label Troubleshooting Guide for suggestions, or give us a call.

Product Returns and Claims

See Ordering Info for more details.

Stock Non Residue Labels

These labels are available for immediate shipment -- place your order by 2pm and your order ships the same day.

Stock non-residue security labels are sold in rolls of 250 and 1000 labels. All stock sizes include a unique serial number (pre-assigned) in black ink:

Specifications
Material Polyester Film (2 mils thick)
Adhesive Typical 1 mil thick (unless noted otherwise), solvent grade
Color As shown below
Custom Imprint Unique Serial Number (Black Ink)
Tamper Evidence Non-residue "OPEN VOID" Message
Minimum Order Qty
  • Rolls of 250
  • Rolls of 1,000
Shipping Same day if ordered by 2pm.

Non Residue Security Label, 0.375 in x 1.0 in, XSG52-A18-369BSN (BLUE)

Tamper Evident Security Label

Before


Tamper Evident Security Label

After

Label Size: 0.375 in x 1.00

security label video

Pricing Information

WHILE SUPPLIES LAST

1+ 3+ 5+ 10+
Roll of 1,000 $100 $90 $85 Call Add to Cart
Roll of 250 $40 -- -- -- Add to Cart

Non Residue Security Label, 0.375 in x 2.25 in, XSG52-A17-368BSN (BLUE)

Tamper Evident Security Label

Before


Tamper Evident Security Label

After

Label Size: 0.375 in x 2.25

security label video

Pricing Information
1+ 3+ 5+ 10+
Roll of 1,000 $200 $180 $170 Call Add to Cart
Roll of 250 $80 -- -- -- Add to Cart

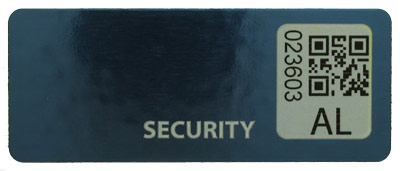

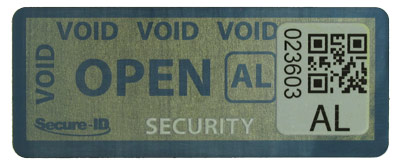

Non Residue Security Label, 0.8 in x 2.0 in, XSG52-A15-366BSN (BLUE)

Tamper Evident Security Label

Before


Tamper Evident Security Label

After

Label Size: 0.8 in x 2.0 in

security label video

Pricing Information
1+ 3+ 5+ 10+
Roll of 1,000 $200 $180 $170 Call Add to Cart
Roll of 250 $80 -- -- -- Add to Cart

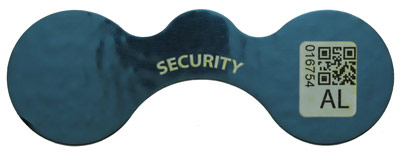

Non Residue Security Label, 1.0 in x 2.875 in, XSG52-A14-365BSN (BLUE)

NOTE: Adhesive is 5 mils thick which improves adhesion to heavily textured surfaces

Tamper Evident Security Label

Before

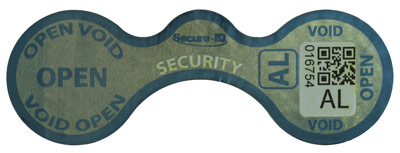

Tamper Evident Security Label

After

Label Size: 1.0 in x 2.875 in
Barbell

security label video

Pricing Information
1+ 3+ 5+ 10+
Roll of 1,000 $250 $225 $210 Call Add to Cart
Roll of 250 $100 -- -- -- Add to Cart

Non Residue Security Label, 1.0 in x 4.0 in, XSG52-A13-374BSN (BLUE)

Tamper Evident Security Label

Before


Tamper Evident Security Label

After

Label Size: 1.0 in x 4.0 in
With Security Slits

security label video

Pricing Information
1+ 3+ 5+ 10+
Rolls of 1,000 $250 $225 $215 Call Add to Cart
Roll of 250 $100 -- -- -- Add to Cart

Non Residue Security Label, 1.0 in x 4.0 in, XSG52-A05-513BSN (BLUE)

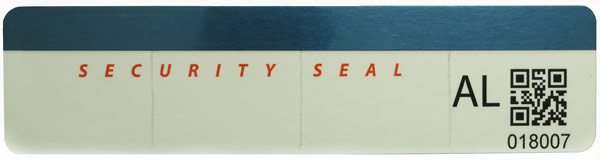

Tamper Evident Security Label

Before

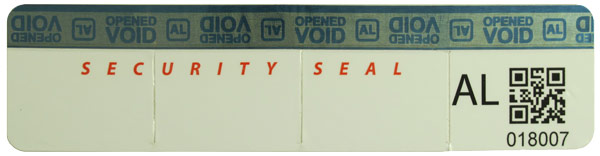

Tamper Evident Security Label

After

Label Size: 1.0 in x 4.0 in

security label video

Pricing Information
1+ 3+ 5+ 10+
Roll of 1,000 $350 $330 $320 Call Add to Cart
Roll of 250 $120 -- -- -- Add to Cart

Non Residue Security Label, 1.0 in x 4.0 in, XSG52-A05-513GWSN (GREEN)

Tamper Evident Security Label

Before


Tamper Evident Security Label

After

Label Size: 1.0 in x 4.0 in

security label video

Pricing Information
1+ 3+ 5+ 10+
Roll of 1,000 $350 $330 $320 Call Add to Cart
Roll of 250 $120 -- -- -- Add to Cart

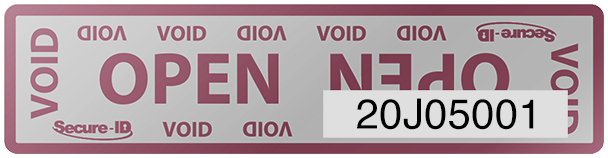

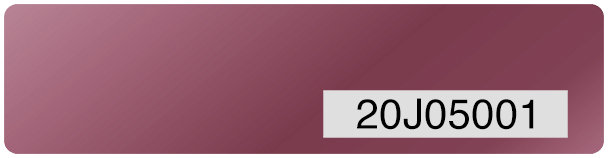

Non Residue Security Label, 1.0 in x 4.0 in, XSG52-A05-513MSN (MAGENTA)

Tamper Evident Security Label

Before


Tamper Evident Security Label

After

Label Size: 1.0 in x 4.0 in

security label video

Pricing Information
1+ 3+ 5+ 10+
Roll of 1,000 $350 $330 $320 Call Add to Cart
Roll of 250 $120 -- -- -- Add to Cart

Custom Imprinted Non Residue Labels

Secure-ID Seals must include a unique custom imprint and/or serial number. The optional serial number is available at no additonal cost. For security purposes, this product is not sold blank. Allow 1 week for custom printed stock labels.

Some sizes are available in multiple stock colors -- BLUE, GREEN, GOLD and MAGENTA.

The pricing and quantities shown are for typical order quantities. We will produce the exact quantity you order using the pricing formula shown. No minimum order quantity.

Custom sizes also available (allow 2 weeks) in all colors.

Optional RUSH service is available.

Security Labels Blue

Security LabelsMagenta

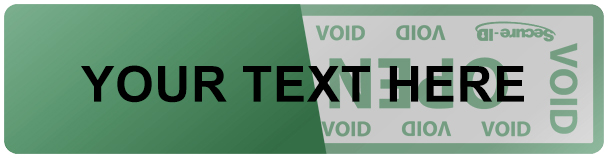

Security Labels Green

Security Labels Gold

Specifications
Material Polyester Film (3 mils thick)
Color
  • Blue
  • Magenta
  • Green
  • Gold
Custom Imprint
  • Company Logo (Black or White Ink)
  • Custom Text (Black or White Ink)
  • Unique Serial Number (Black or White Ink)
Tamper Evidence Non-residue "OPEN VOID" Message
Minimum Order Qty None
Shipping 1 Week
Options & Pricing
Custom Logo / Graphic $35 (One Time Expense)
Colored Imprint Add $0.05 Per Label for Red, Blue or Green
Serial Number Included (no additional price)
RUSH Service Next Day - $100 (Click Here For More Rush Options)
Custom Label Size Please Call For Quote

Learn More

Specifications and Intended Use

Please see the Specifications and Intended Use for more details.

Pricing below includes: Custom text & unique serial number (black or white ink)

Pricing below excludes: Shipping fees, custom logo fees, custom text color fees

** Allow a two week lead time on these products.

Custom Imprinted Non Residue Security Label, 1.0 in x 1.50 in Rectangle

Tamper Evident Security Label

Design Online Blue: SSG52-A00-11BL
Design Online Gold: SSG52-A00-11GO
Design Online Magenta: SSG52-A00-11MA
Design Online Green: SSG52-A00-11GN

Label Size: 1.0 in x 1.50 in

Pricing Formula: $300 Per Order + $0.12 Per Label

Pricing Information
100 1,000 5,000 10,000
$312 $420 $900 Call

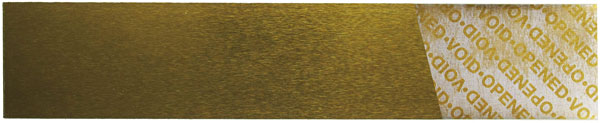

Custom Imprinted Non Residue Security Label, 0.75 in x 3.75 in

Tamper Evident Security Label

Design Online Gold: SSG52-A00-23GO

Label Size: 0.75 in x 3.75

Pricing Formula: $300 Per Order + $0.22 Per Label

Pricing Information
100 1,000 5,000 10,000
$322 $520 $1400 Call

Custom Imprinted Non Residue Security Label, 1 in x 4 in

Tamper Evident Security Label


Design Online Blue: SSG52-A05-513BL

Label Size: 1.0 in x 4.0 in

Pricing Formula: $300 Per Order + $0.32 Per Label

Pricing Information
100 1,000 5,000 10,000
$332 $620 $1900 Call

Custom Imprinted Non Residue Security Label, 1 in x 4 in

Tamper Evident Security Label

Design Online Blue: SSG52-A05-513BLWB2
Design Online Magenta: SSG52-A05-513MAWB2
Design Online Green: SSG52-A05-513GNWB2
Design Online Gold: SSG52-A05-513GOWB2

Label Size: 1.0 in x 4.0 in

Pricing Formula: $300 Per Order + $0.32 Per Label

Pricing Information
100 1,000 5,000 10,000
$332 $620 $1900 Call

Custom Secure-ID Security Labels

We offer Secure-ID labels with your custom text, logo, serial numbers, etc. See our options and pricing below. Please call to place orders:

  • Choose from 4 stock background colors (gold, blue, green, magenta)
  • Select from over 20 stock sizes and shapes (please call for details)
  • Use our stock Hidden Tamper Evident Pattern: OPENED VOID random repeating pattern
  • Your custom text/logo and serial number imprinted in black

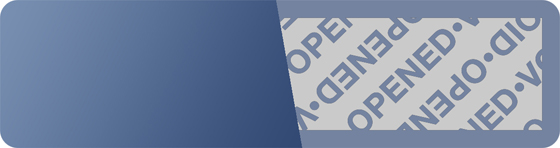

Tamper Evident Security Label Tamper Pattern

Tamper Evident Security Label Tamper Pattern

Tamper Evident Security Label Tamper Pattern

Tamper Evident Security Label Tamper Pattern

Pricing Formula = $300 set up/order + labels + optional custom die cutter + option hidden pattern

A) Production Set up: $300.00/order

  • Applies to each order

B) Pricing Formula for labels (stock size/shape): Based on square inch area of the finished label.

  • 1 sq inch or less: $0.10/label
  • 1.5 sq inch or less: $0.14/label
  • 2 sq inch or less: $0.18/label
  • 3 sq inch or less: $0.25/label
  • 4 sq inch or less: $0.32/label
  • 5 sq inch or less: $0.40/label
  • 6 sq inch or less: $0.48/label
  • Minimum purchase required: $1000 of labels/order
  • Above prices include the optional serial number at no additional cost
  • Additional Inks (other than black): please call
  • Add $35 for artwork prep for custom logo/graphics (no charge for custom text)
  • Allow 3 weeks delivery

C) Custom die cutter for custom size/shape: add $395 (one time fee) + add $200 set up/order

D) Custom Hidden Tamper Evident Pattern: add $800.00 set up/order (allow 4 weeks delivery)

  • Allow 4 weeks for delivery
Can't Find What You're Looking For? Try our Application Search
For Questions and Ordering Information, Please Contact:
Brian Cramer Brian Cramer
Sales & Customer Service
(800) 336-6636 ext 4211
email: bcramer@novavisioninc.com
Bill Kudzia Bill Kudzia
Sales & Customer Service
(800) 336-6636 ext 4232
email: bkudzia@novavisioninc.com
Questions? Need Help?
