Cable Security Seals
Cable seals are durable and intended for higher security applications. They are available in different cable diameters and lengths for use in various applications.
Our 3.5mm and 5.0mm cable seals are compliant with ISO 17712:2013 and are rated as a high security (H) seals. Authentic NovaVision cable seals have our brand name (NovaVision™) etched on the locking housing.
We offer both stock and custom imprinted cable seals.
Choosing A Cable Seal
Indoor / Outdoor Use
Our standard seals have galvanized cables, which are suitable for outdoor applications up to 3 months. If your seal will be used in an outdoor environment for more than 3 months, we suggest you consider our seals with stainless steel wire, which are also available in stock and custom designs.
Increase Productivity
Some seals have bar codes for added convenience in recording the serial number. Bar codes improve productivity and accuracy for larger projects.
Ensure Application Compatibility
If threading the cable through a hole, allow at least 10% clearance for cable thickness variation. For example, for a 1.5 mm cable, the hole size must be a minimum of 1.65 mm diameter. Inadequate clearance may cause the cable ends to unravel, which will then interfere with inserting the cable into the locking mechanism.
The usable cable length for locking is typically 2 inches shorter than the actual cable length because the cable is tapered.
Pricing Considerations
Shorter and thinner cables cost less. To reduce cost, use the shortest length and thinnest cables possible while still meeting your security application requirements. Also consider our economy and discontinued product lines at the bottom of this page.
Increased Security
All cable seals have a unique serial number. Record the serial number for added security.
For higher security on truck trailer or shipping container, use a longer length cable (36 inch, 54 inch, or 76 inch) to secure both locking rods together.
- Medium length cables (36 inch) are ideal for securing only the locking rods on truck trailers while using another type of seal (or lock) secures the handle latch.
- Long length cables (48, 54, and 76 inches) are ideal for securing both the locking rods and the handle latch on truck trailers or shipping containers.
- Thicker cables offer more security because they require special cutting tools to remove them.
- Cables made of non-preformed steel offer more security. When cut, non-preformed wire will unravel to minimize unauthorized reuse of the cable seal.
Cables with a colored thread (see our CableGuard™ cable seals) and/or custom imprinted seals provide an added anti-counterfeiting feature to combat removal of the original seal and substituting with a similar replacement.
Cables with a double locking mechanism (see our TwinLock™ cable seals) provided added security from tampering.
Cables integrated with two independent locks (see our GeminiGuard™ and DualGuard™ products) provide added security for both doors (by wrapping the keeper bars) and the latch/hasp. These seals require two cuts to remove.
As an added security measure, when removing the seals, cut the cable near the fixed point of the lock housing to prevent unauthorized reuse.
Industry Compliance
Shipments which cross international borders usually require a seal that is rated by ISO 17712 as high security.
To qualify as a high security seal and comply with ISO 17712:2013, the cable seal diameter must be a minimum of 3.5mm. This is the minimum cable diameter required to pass the shear test of ISO 17712. Our 3.5mm and 5.0mm cable seals are compliant with ISO 17712:2013 and are rated as high security (H) seals.
Another requirement for ISO 17712:2013 is that cable seals must be independently tested at least every 24 months. Ask the supplier of your cable seals to provide the manufacturer’s written verification the seal was independently tested to comply with ISO 17712:2013 as a HIGH security seal. To meet the ISO standard, the testing and certificate must be dated within 24 months of your purchase. Our certificates are listed in the "Certificate of Conformance" section below.
Confirm the manufacturer’s name that is etched in the cable seal matches the certification.Authentic NovaVision cable seals are marked with our brand name (NovaVision™).
Customize For More Security
In addition to our extensive selection of stock cable seals, we can provide custom cable seals. Custom imprinted seals offer more security. Please call for more information.
Features & Benefits
Most of our cable seals (1.5 mm diameter and larger) are constructed of galvanized steel aircraft cable, which will unravel upon cutting. This feature minimizes unauthorized reuse of the seal, which might be attempted by re-threading the cut cable into the locking mechanism of an adjustable cable seal.
Our premium cable seals include these added features and benefits:
- Improved locking mechanism to combat tampering.
- Bar codes (128) that match the unique serial number for improved productivity.
- Lightweight (but durable) construction to minimize shipping costs.
- Cable seals are also configured as adjustable length or fixed length.
All of our cable seals are manufactured in facilities which are CTPAT compliant.
Typical Applications
Fixed Length Cable Seals
Locking Mechanism
Cable Seal with Optional Hologram
- Cargo containers
- Truck trailer doors
- Tanker trucks
- Rail car doors
- Airline trolleys
- Utility meters and valves
- Valves in petrochemical industry
Adjustable Cable Seals
After threading into the locking channel, adjustable length seals can be tightened for a snug fit.
Fixed length seals are secured by inserting the metal pin into the locking chamber. Wrap the cable as needed to minimize slack before locking.
After the locking mechanism is engaged, the cable seal can only be removed with a cable or bolt cutter. Cable seals are a one-time use product.
For added security, an optional custom imprinted hologram label can be added to the cable seal housing. Please Call for more information.
Installing Adjustable Cable Seals
- Thread the loose cable end into the locking channel and push through the locking mechanism.
- Pull the cable snug to minimize slack.
- Pull on the locking mechanism (or reverse pull the threaded cable) to fully engage the lock onto the cable.
- For MAXIMUM security, after installing, cut the cable flush with the locking mechanism. The cable will begin to unravel when cut; this minimizes tampering and unauthorized reuse of the seal, since the cable cannot be reused once it starts to unravel.
Installing Fixed Length Cable Seals
- Wrap the cable around locking rods; minimize slack
- Push pin into the locking mechanism
- Pull on the cable to confirm the locking mechanism is engaged.
Removing Cable Seals
- Cut with bolt cutter or wire cutter and wear safety glasses.
- As an added precaution against unauthorized reuse, cut the adjustable cable at the fixed end — not the adjustable end — when removing.
To prevent reuse, cut the fixed cable end when removing
For fixed length seals, the pin and locking mechanism are permanently sealed to the cable ends. Therefore, the fixed cable can be cut at any point.
Certificate of Conformance
Security Options for Trucks and Containers
Stock Cable Seals
Each package contains 10 seals with consecutive serial numbers. If purchasing multiple packages, we cannot guarantee the packages will be consecutive.
For larger quantity orders, consecutive serial numbers are possible by purchasing in full case quantities. Click on the link for "more info" (next to the above photos) for information about full case quantities on the selected cable seal.
CTPAT and ISO 17712:2013 Compliant High (H) Security Seal
Double loops mean locking AND sealing: just one seal number controls both functions simultaneously. Tamper-evident intelligent design in a cost-effective lightweight package, the SL-C-MS-C5.0-62O functions like a traditional Sealock in streamlined cable seal form.
Sold in cases of 50 seals.
- 62 inch 100% corrosion-resistant galvanized steel braided aircraft cable construction
- Tamper-indicative braided cable frays when cut, making re-welding impossible
- Orange abrasion-resistant, tamper-indicative anodized aluminum lock body
- Anodized finish with laser etching (custom colors available)
- Double loop, with 1 set of numbers for security, yet requires 2 cuts to remove
- Lock AND seal with 1 low cost unit
- 1-piece device means no loose/lost parts
- Designed to fit most swing-door conveyances
- Unique design – U.S. Patent 7,063,362
Code: SL-C-MS-C5.0-62O
| Pricing Information | ||||
|---|---|---|---|---|
| Qty (Seals) | Qty (Cases) | $/Seal | $/Case | Total |
| 50 | 1 | $7.25 | $362.50 | $362.50 |
CTPAT and ISO 17712:2013 Compliant High (H) Security Seal
| Product Specifications | |
|---|---|
| Security Rating | "H" High Security |
| Cable Type | Adjustable Length, Galvanized Steel, Non-Preformed |
| Locking Body | Aluminum, Black, Red, Blue |
| Stock Imprint |
|
| Stock Imprint Color | White |
| Packaging | Bags of 10 Seals |
| Product Code | $/Seal | |||||
|---|---|---|---|---|---|---|
| 10 | 50 | 100 | 200 | 500 | 1,000 | |
|
Size: 5.0mm x 12 inch Code: MS-C5.0-12K (Black) Code: MS-C5.0-12B (Blue) Code: MS-C5.0-12R (Red) |
$3.50 | $2.45 | $1.49 | $1.37 | $1.35 | Call |
|
Size: 5.0mm x 36 inch Code: MS-C5.0-36K (Black) |
$4.00 | $3.47 | $2.95 | $2.45 | $2.00 | Call |
|
Size: 5.0mm x 54 inch Code: MS-C5.0-54K (Black) |
$4.50 | $3.89 | $3.45 | $3.25 | $2.99 | Call |
|
Size: 5.0mm x 76 inch Code: MS-C5.0-76K (Black) Code: MS-C5.0-76B (Blue) Code: MS-C5.0-76R (Red) |
$5.00 | $4.40 | $3.85 | $3.60 | $3.35 | Call |
DualGuard™ Premium Bolt Seal (8 mm) & Cable Seal (5 mm) Combination, Adjustable Length, Black & Yellow, MS-C5B9-76KY
DualGuard™ Bolt/Cable Seal
CTPAT and ISO 17712:2013 Compliant High (H) Security Seal
Our DualGuard™ seals include a 5mm cable seal and 8mm steel bolt seal in a unitized construction. Both the cable and bolt seal are both CTPAT compliant and meet the new design and construction standards of ISO17712:2013, which provides improved security.
The cable is 76 inches long, which typically allows for a double-wrap around the locking rods and for the bolt seal to secure the latch. For added security, to remove this seal requires 2 cuts (one for the cable and one for the bolt seal).
Sold as individual seals (Full Case = 50 DualGuard™ Seals)
Code: MS-C5B9-76KY
| Product Code | $/Seal | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5 | 10 | 25 | 50 | 100 | 200 | 500 | 1,000 | |
| Size: 5.0mm x 76 inch Code: MS-C5B9-76KY |
$10.00 | $8.00 | $6.50 | $6.00 | $5.00 | $4.75 | $4.50 | $4.25 | Call |
GeminiGuard™ Premium Cable Seal, 3.5 mm diameter (0.138"), Adjustable length, Black, Bag of 10, MS-C3.5X-73K
CTPAT and ISO 17712:2013 Compliant High (H) Security Seal
Our GeminiGuard™ seal provides 2 lengths of cable on a central locking head which allows you to secure both the Keeper Bars on the trailer doors and Hasp simultaneously. Both the Keeper Bars and Hasp are secured by separate loops of cable, and then back through two separate locks in the locking head. This seal requires 2 cuts for removal (one on each side of the locking head) providing additional safeguard against tampering. Sold in bags of 10 seals or full cases of 100 seals.
| Specifications | |
|---|---|
| Security Rating | "H" High Security |
| Cable Length |
Overall Length - 73 inches Lock Body to end of each cable - 36 inches |
| Cable Diameter | 3.5 mm (0.138 inch) |
| Cable Type | Adjustable Length, Non Pre-Formed Steel, Galvanized Steel |
| Cable Locking Body | Aluminum, Black |
| Stock Imprint |
"SEALED" Text Unique Serial Number 128 Bar Code (White) |
| Stock Imprint Color | White |
| Selling Units | Bags of 10 Seals, Cases of 100 |
| Weights | Bag of 10: 2.4 lbs. Case (100 qty): 24.0 lbs. |
| Product Code | $/Seal | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| 10 | 50 | 100 | 200 | 500 | 1000 | ||||
| Size: 3.5mm x 73 inch Code: MS-C3.5X-73K (Black) |
$4.25 | $3.20 | $2.75 | $2.35 | $2.00 | $1.75 | |||
CTPAT and ISO 17712:2013 Compliant High (H) Security Seal
| Specifications | |
|---|---|
| Security Rating: | "H" High Security |
| Cable Type | Adjustable Length, Galvanized Steel, Non-Preformed |
| Locking Body | Aluminum, Blue |
| Stock Imprint |
|
| Stock Imprint Color | White |
| Packaging | Bags of 10 Seals |
| Product Code | $/Seal | |||||
|---|---|---|---|---|---|---|
| 10 | 50 | 100 | 200 | 500 | 1,000 | |
|
Size: 3.5mm x 12 inch Code: MS-C3.5-12B (Blue) Code: MS-C3.5-12R (Red) Code: MS-C3.5-12K (Black) |
$2.50 | $1.58 | $1.45 | $1.23 | $1.10 | Call |
|
Size: 3.5mm x 36 inch Code: MS-C3.5-36B (Blue) |
$3.00 | $2.25 | $2.00 | $1.75 | $1.50 | Call |
|
Size: 3.5mm x 54 inch Code: MS-C3.5-54B (Blue) |
$3.25 | $2.50 | $2.15 | $1.95 | $1.65 | Call |

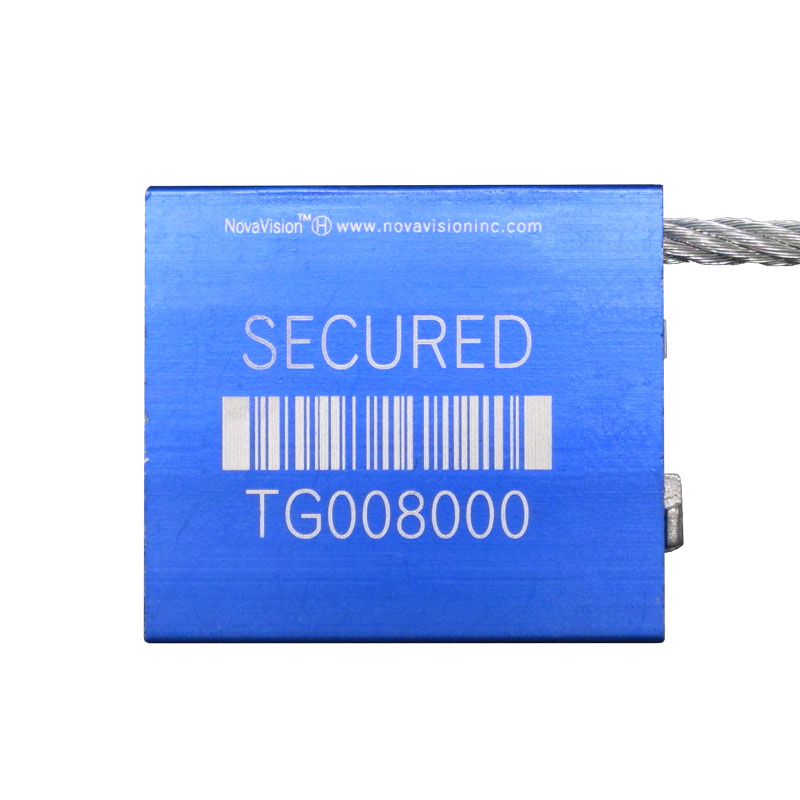

TwinLock™ Premium Cable Seal, 3.5mm diameter (0.138”), Adjustable length, Blue, Bag of 10, MS-C3.5T-18
TwinLock™ Cable Seal
CTPAT and ISO 17712:2013 Compliant High (H) Security Seal
Our TwinLock™ cable seal provides a double-lock system as an added safeguard against tampering. The 18 inch cable is threaded through the hasp and then through two separate locks in the locking head. After securing the cable through both locks, the cable between the two locks is encased within the locking head and is inaccessible to minimize tampering. Sold in bags of 10 seals or full cases of 250 seals
| Specifications | |
|---|---|
| Security Rating: | "H" High Security |
| Cable Type | Adjustable Length, Galvanized Steel, Non-Preformed |
| Locking Body | Aluminum, Blue |
| Stock Imprint |
|
| Stock Imprint Color | White |
| Packaging |
|
| Product Code | $/Seal | |||||
|---|---|---|---|---|---|---|
| 10 | 50 | 100 | 200 | 500 | 1,000 | |
|
Size: 3.5mm x 18 inch Code: MS-C3.5T-18B (Blue) |
$3.00 | $2.25 | $2.00 | $1.75 | $1.50 | Call |
Our pull-tight cable seal is designed to provide limited resistance to unauthorized access and requires a lightweight tool for removal.
This is currently offered in ready to ship stock as a 1.5mm x 300mm length, available in 4 colors. Availabled in bags of 100 or boxes of 1,000.
This Zinc Alloy ABS coated seal's features include: anti-corrosion, anti-UV, zinc alloy locking mechanism, tamper-evidence with use of non-preformed steel wire that unravels when cut, requires cable cutters for removal.
Applications include: totes, drums, tool boxes, lockers, container door latches, trailer and rail door latches, ballot boxes (elections).
These cable seals are not ISO 17712 compliant. Please call for customized inquiries (alternative colors, custom etiching, various cable lengths).
MS-PC1.5-12Y (Yellow)
MS-PC1.5-12B (Blue)
MS-PC1.5-12G (Green)
MS-PC1.5-12M (Salmon)
| Qty (Seals) | Qty (Bags) | $/Seal | $/Bag | $/Total | ||
|---|---|---|---|---|---|---|
| 100 | 1 | $0.80 | $80.00 | $80.00 | ||
| 200 | 2 | $0.76 | $76.00 | $152.00 | ||
| 300 | 3 | $0.72 | $72.00 | $216.00 | ||
| 500 | 5 | $0.68 | $68.00 | $340.00 | ||
| 1,000 | 10 | $0.64 | $64.00 | $640.00 | ||
| >1,000 | Call | |||||
CableGuard™ Premium Cables (5mm and 3.5mm diameter), Adjustable Length, Bag of 10
CableGuard™
CTPAT and ISO 17712:2013 Compliant High (H) Security Seal
Our CableGuard™ seals feature a blue colored strand in the cable, which provides an added anti-counterfeiting feature. Sold in bags of 10 seals.
| Specifications | |
|---|---|
| Security Rating | "H High Security" |
| Cable Type | Adjustable Length, Galvanized Steel, Non-Preformed |
| Locking Body | Aluminum, Black, Blue |
| Stock Imprint |
|
| Stock Imprint Color | White |
| Packaging | Bags of 10 seals |
| Product Code | $/Seal | |||||
|---|---|---|---|---|---|---|
| 10 | 50 | 100 | 200 | 500 | 1,000 | |
Size: 3.5mm x 12 inch
Code: MS-C3.5B-12B (Blue)
|
$2.75 | $1.83 | $1.70 | $1.48 | $1.35 | Call |
|
Size: 5.0mm x 12 inch
Code: MS-C5.0B-12K (Black)
|
$3.75 | $2.70 | $1.74 | $1.62 | $1.60 | Call |
|
Size: 5.0mm x 76 inch
Code: MS-C5.0B-76K (Black)
|
$5.50 | $4.90 | $4.35 | $4.10 | $3.85 | Call |
| Specifications | |
|---|---|
| Cable Type | Adjustable Length, Galvanized Steel, Non-Preformed |
| Locking Body | Aluminum, Red, Blue |
| Stock Imprint |
|
| Stock Imprint Color | White |
| Packaging | Bags of 10 seals |
| Product Code | $/Seal | |||||
|---|---|---|---|---|---|---|
| 10 | 50 | 100 | 200 | 500 | 1,000 | |
|
Size: 2.0mm x 12 inch Code: MS-C2.0-12R (Red) Code: MS-C2.0A-12B (Blue) |
$2.40 | $1.90 | $1.30 | $1.10 | $0.97 | Call |
|
Size: 2.0mm x 24 inch Code: MS-C2.0-24R (Red) |
$2.50 | $1.95 | $1.70 | $1.30 | $1.20 | Call |
|
Size: 2.0mm x 36 inch Code: MS-C2.0-36R (Red) |
$2.75 | $2.00 | $1.75 | $1.50 | $1.40 | Call |
|
Size: 2.0mm x 54 inch Code: MS-C2.0-54R (Red) |
$3.00 | $2.25 | $1.85 | $1.75 | $1.55 | Call |
| Specifications | |
|---|---|
| Cable Type | Adjustable Length, Galvanized Steel, Non-Preformed |
| Locking Body | Aluminum, Green, Red |
| Stock Imprint |
|
| Stock Imprint Color | White |
| Packaging | Bags of 10 seals |
| Product Code | $/Seal | |||||
|---|---|---|---|---|---|---|
| 10 | 50 | 100 | 200 | 500 | 1,000 | |
|
Size: 1.5 mm x 12 inch Code: MS-C1.5-12G (Green) Code: MS-C1.5-12R (Red) Code: MS-C1.5-12K (Black) |
$1.35 | $1.27 | $1.17 | $0.96 | $0.87 | Call |
|
Size: 1.5 mm x 36 inch Code: MS-C1.5-36G (Green) Code: MS-C1.5-36R (Red) Code: MS-C1.5-36K (Black) |
$1.70 | $1.59 | $1.46 | $1.42 | $1.34 | Call |
| Specifications | |
|---|---|
| Size | 1.8 mm x 48 inch |
| Cable Type | Fixed Length, Galvanized Steel, Non-Preformed |
| Locking Body | Plastic (ABS), White |
| Stock Imprint |
|
| Stock Imprint Color | Black |
| Packaging | Bags of 10 Seals |
Code: MS-C1.8A-48W
| Product Code | $/Seal | |||||
|---|---|---|---|---|---|---|
| 10 | 50 | 100 | 200 | 500 | 1,000 | |
|
Size: 1.8 mm x 48 inch
Code: MS-C1.8A-48W (White)
|
$2.75 | $2.40 | $2.15 | $1.95 | $1.65 | Call |
Specialty Cable Seals
Stainless Steel Cables
NON-PREFORMED
| Specifications | |
|---|---|
| Cable Type | Adjustable Length, Stainless Steel, Non-Preformed |
| Locking Body | Aluminium, Red, Black |
| Stock Imprint |
|
| Packaging | Bags of 10 Seals |
| Product Code | $/Seal | |||||
|---|---|---|---|---|---|---|
| 10 | 50 | 100 | 200 | 500 | 1,000 | |
|
Size: 3.5 mm x 14 inch MS-C3.5-14R-SS (Red) |
$2.60 | $2.10 | $1.80 | $1.30 | $1.20 | Call |
|
Size: 1.5 mm x 18 inch MS-C1.5-18K-SS (Black) |
$2.40 | $1.90 | $1.60 | $1.10 | $1.00 | Call |
Stainless Steel Cables
PREFORMED
| Specifications | |
|---|---|
| Cable Size | 2.0 mm x 12 inch |
| Cable Type | Adjustable Length, Stainless Steel, Preformed |
| Locking Body | Aluminum, Blue |
| Stock Imprint |
|
| Stock Imprint Color | White |
| Packaging | Bags of 10 seals |
Code: MS-C2.0P-12B-SS
| Product Code | $/Seal | |||||
|---|---|---|---|---|---|---|
| 10 | 50 | 100 | 200 | 500 | 1,000 | |
|
Size: 2.0 mm x 12 inch Code: MS-C2.0P-12B-SS (Blue)
|
$2.40 | $1.90 | $1.60 | $1.10 | $1.00 | Call |
The Navaloop MS-BC-03 is a fixed length bolt seal and cable seal combination. The cable provides added security when wrapped around the keeper bars of a truck trailer or shipping container to secure both doors.
The bolt and locking mechanism have matching serial numbers and the brand name "NAVATECH" in black ink. The bolt seal on the Navaloop has an anti-spin feature.
The current ISO standard for bolt seals requires bolt seals to have a minimum dimension of 18mm (0.709 in) on the head and locking mechanism. The Navaloop bolt seal does not meet this requirement. The cable diameter is 1.8 mm, which is less than the CTPAT minimum of 3.5mm, but the Navaloop is a proven security seal that is acceptable for domestic shipments.
If you need a bolt or cable seal that is ISO rated, our DualGuard™ Bolt Seal & Cable Seal is compliant with the current ISO standard ISO17712:2013.
If used to wrap the cable around the locking rods on a truck trailer, confirm the clearance between the locking rods and door is at least 0.7715 in (19.6 mm). This minimum clearance is needed to pass the lock behind the locking rods.
Code: MS-BC-03
| Qty (Seals) | Qty (Bags) | $/Seal | $/Bag | Total |
|---|---|---|---|---|
| 10 | 1 | $4.00 | $40 | $40 |
| 50 | 5 | $3.00 | $30 | $150 |
| 100 | 10 | $2.50 | $25 | $250 |
| 500 | 50 | $1.99 | $19.90 | $995 |
| 1,000 | 100 | $1.90 | $19 | $1,900 |
| 2,000 | 200 | Call | Call | Call |
Premium Bolt Seals
| Specifications | |
|---|---|
| Size | 3 mm x 14 inch |
| Cable Type | Adjustable Length |
| Locking Body | Plastic, White |
| Stock Imprint |
|
| Packaging | Bags of 10 Seals |
| Inventory | 80 Seals Remaining as of Nov. 11, 2022 |
While Supplies Last
REDUCED PRICE
Code: MS-C3.0-14W
| Qty (Seals) | Qty (Bags) | $/Seal | $/Bag | Total |
|---|---|---|---|---|
| 10 | 1 | $1.25 | $12.50 | $12.50 |
Our twist seal features a 0.7mm diameter wire for sealing latches with small holes. The seals include a serial number (in black) with a matching bar code.
Sold in bundles of 100 seals
Code: MS-WB-V3
| Qty (Seals) | Qty (Bags) | $/Seal | $/Bags | Total |
|---|---|---|---|---|
| 100 | 1 | $0.84 | $84.00 | $84.00 |
| 500 | 5 | $0.71 | $71.00 | $355.00 |
| 1000 | 10 | $0.58 | $58.00 | $580.00 |
| 5000 | 50 | Call | Call | Call |
Our plunger seal features a 0.8mm diameter wire for sealing latches with small holes. The seals include a serial number (in white).
Sold in bundles of 100 seals
Code: MS-WA-R3
| Qty (Seals) | Qty (Bags) | $/Seal | $/Bags | Total |
|---|---|---|---|---|
| 100 | 1 | $0.715 | $71.50 | $71.50 |
| 500 | 5 | $0.606 | $60.60 | $303.00 |
| 1000 | 10 | $0.497 | $49.70 | $497.00 |
| 5000 | 50 | Call | Call | Call |
Typical Applications
Truck Trailer Seals
Locking Rods (Keeper Bars) Only
Seal Any Hasp
DualGuard™ for Locking Rods and Handle Latch
Alternate Navaloop Installation on trailer
|
Brian Cramer Sales & Customer Service (800) 336-6636 ext 4211 email: bcramer@novavisioninc.com |
|
Hillary Crago Sales & Customer Service (800) 336-6636 ext 4254 email: hcrago@novavisioninc.com |
