ToppClips™

Product Overview

Thieves can easily access pallets with conventional banding and remove and replace that generic banding with little skill or effort. After the banding is removed, the contents can be removed and/or contraband can be added.

The ToppClip™ system is designed to secure the pallet by indicating tampering or replacement of the original banding. Other applications include banding on other containers such as crates, totes, slip trays, etc.

Once applied, tampering or replacement of the banding is extremely difficult without leaving signs of tampering. The metal ToppClip™ is the only crimp for the strapping. The presence of any other banding crimps indicates tampering.

We offer stock and custom versions.

How Does the ToppClip™ System Work?

The ToppClip™ system features 3 components, which together provide both a deterrent and evidence of tampering:

  1. Metal Clip for Banding
  2. Plastic Adjustable Seal
  3. Tamper Evident Warning Label

Each component has a unique serial number. The tamper evident warning label facilitates recording of the component serial numbers atop the pallet.

The metal ToppClip™ is the key component of the system. The ToppClip™ is the only crimp needed to secure the banding of the pallet seal system. So the presence of any other banding crimps in the seal system indicates tampering.

A visual inspection protocol is essential to achieve the maximum effectiveness.

  • The shipper should record the serial numbers on the shipping documents.
  • The receiver should verify the component serial numbers and look for other signs of obvious tampering.

After your cargo reaches its destination, you can use the ToppClip™ protected pallets as a storage security tool to help save time when counting items or when taking physical inventory.

Additionally it deters tampering or theft of pallet contents and also avoids repacking for cross-docked or trans-ship freight.

The ToppClip™ system meets the chain of custody specifications of the TSA for sealing CCSF containers.

For added security (and for larger pallets with multiple banding), use two or more ToppClip™ devices and related banding.

A standard tensioner and crimper tool are needed to apply ToppClips™.

A special hole punch is required to apply the plastic adjustable seal. This punch can be purchased separately. The punch is also a standard item in the 'starter kit' (TCP-50) along with 50 ToppClip™ seals.

If using plastic banding, the standard punch is acceptable. If using metal banding, we recommend the Heavy Duty punch.

Customized ToppClips™ provide more security. We can include your custom logo, text, serial numbers, colors, etc.

If your pallet also uses conventional crimped strapping to secure the load, for added security use our pallet labels to secure the crimped seals on the strapping.

Specifications

  1. ToppClip™ Metal Crimping Clip
    • Material: Galvanized steel
    • Thickness: .020 inch thick (typical)
    • Suitable for .50 inch wide strapping
    • Affixed with red, tamper evident label (VOID OPENED) with serial number
  2. Adjustable Plastic Seal
    • Material: Polypropylene plastic
    • Plastic strap dimensions: .10 inch diameter (typical), minimum 5 inch length
    • Imprint: ToppClip™ + serial number
    • Color: Yellow, but may vary

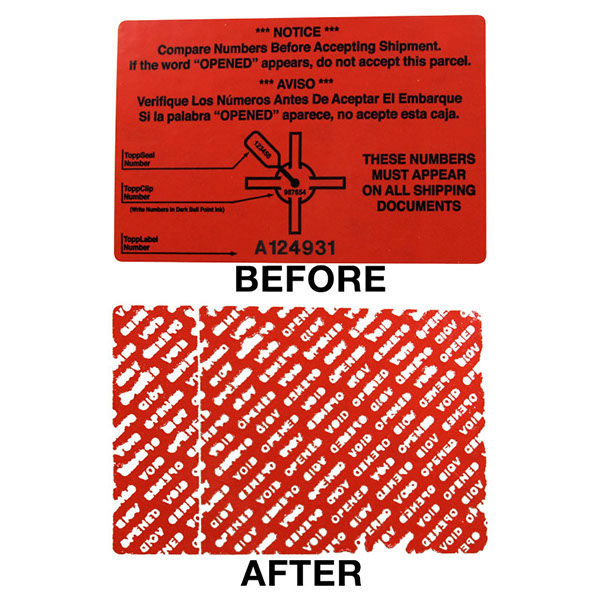

  3. Tamper Evident Warning Label
    • Film Material: Polyester, minimum .001 inch thick
    • Tamper Evident Message: VOID OPENED
    • Size: 3.75 inch x 5.75 inch
    • Label Color: Red
    • Imprint Color: Black
    • Adhesive Material: Permanent Acrylic
    • Minimum Application Temperature: 45F
    • Service Temperature (after applied): -40°F to +180°F
  4. Hole Punch (Model: TCP)
    • Material: Hardened Steel suitable for plastic strapping
    • Hole Size: 1/8 inch diameter (typical)

Installation Instructions

Tools Needed:

  • Your strapping tensioner
  • Your banding crimper
  • A Special ToppClip™ Punch

Prior to affixing the ToppClip™ seals, prepare the pallet:

  • As needed to prevent pilfering of one carton from the pallet, use cardboard panels or wood panels on the sides, top and bottom. Other options include shrink wrap, stretch wrap, or a plastic bag
  • As needed to prevent shifting loads, prepare the pallet with stretch wrap, banding, edge protectors and banding protectors.

Note: Remove the ToppClip™ Warning label slowly from the silicone-coated backer material. Removing the label quickly may cause the label to pre-maturely show the hidden VOID message.

Our ToppClip™ Installation Video can be found at the bottom of this page.
Scroll to video

See the link below for detailed instructions:

ToppClip™ Installation Guide

Typical Applications

ToppClip Pallet Seals
ToppClip™ on Shipping Container

ToppClip Pallet Seals
Sealed Shipping Pallet

Stock ToppClip™ Labels and Tools

Stock products are uncustomized and available for immediate shipment. Order by 2pm and your order ships the same day.

Stock ToppClip™ Master Carton, Carton of 10, 50 or 200 Seal Sets, ZTC-10-MS, ZTC-50-MS, ZTC-200-MS

ToppClip Pallet Seal

BEST VALUE: The ToppClip™ master carton includes 200 pallet seals. As needed, order the hole punch separately (see details below).

The seals have matching serial numbers for the set (ToppClip™, plastic seal, and tamper evident label). If you prefer to have random numbers, simply mix the components.

Pricing Information
  Qty (Seals) Qty (Cartons) $/Seal $/Carton Total
Add to Cart
Code: ZTC-10-MS
10 1 $4.50 $45 $45
Add to Cart
Code: ZTC-50-MS
50 1 $3.90 $195 $195
Add to Cart
Code: ZTC-200-MS
200 1 $2.72 $545 $545
800 4 $2.60 $520 $2,080
2,000 10 $2.49 $498 $4,980
10,000 50 Call Call Call
Specifications
ZTC-10-MS
Carton Weight 2 lbs
Carton Contents
  • 10 ToppClips™
  • 10 Adjustable Plastic Seals
  • 10 Tamper Evident Warning Labels
Carton Dimensions 10.5" x 6" x 6"

ZTC-50-MS
Carton Weight 5 lbs
Carton Contents
  • 50 ToppClips™
  • 50 Adjustable Plastic Seals
  • 50 Tamper Evident Warning Labels
Carton Dimensions 10.5" x 6" x 6"

ZTC-200-MS
Carton Weight 16 lbs
Carton Contents
  • 200 ToppClips™
  • 200 Adjustable Plastic Seals
  • 200 Tamper Evident Warning Labels
Carton Dimensions 20" x 10" x 6"

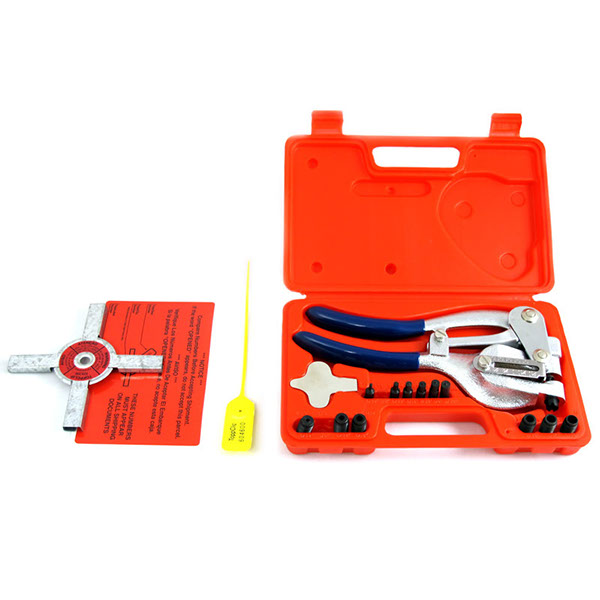

ToppClip™ Starter Kit for Plastic or Metal Strapping, Carton of 10 or 50 Seal Sets and 1 Punch, ZTCP-10-MS and ZTCP-50-MS

ToppClip Pallet Seal

Suitable for use with plastic or metal pallet strapping up to 0.5 inch wide. Includes 10 or 50 matched sets of metal ToppClips™, labels and plastic seals — all with matching numbers. Includes 1 heavy duty hole punch (Product Code: TCP-HD1)

Pricing Information
  Qty (Seals) Qty (Cartons) $/Carton
Add to Cart
Code: ZTCP-10-MS
10 1 $125
Add to Cart
Code: ZTCP-50-MS
50 1 $275
Specifications
ZTCP-10-MS
Carton Weight 6 lbs
Carton Contents
  • 1 ToppClip™ Punch (TCP-HD1)
  • 10 ToppClips™
  • 10 Adjustable Plastic Seals
  • 10 Tamper Evident Warning Labels

ZTCP-50-MS
Carton Weight 6 lbs
Carton Contents
  • 1 ToppClip™ Punch (TCP-HD1)
  • 50 ToppClips™
  • 50 Adjustable Plastic Seals
  • 50 Tamper Evident Warning Labels

ToppClip™ Labels, 3.75" x 5.75", Roll of 100, XS343B-69RESN-100

ToppClip Pallet Seal

As an option for added security, add multiple ToppClip™ Warning Labels on the pallet. The labels feature pre-assigned serial numbers, which are unique and consecutive. Sold in rolls of 100 labels.

$40.00 Per Roll

Add to Cart Code: XS343B-69RESN-100

Specifications
Label Size 3.75 in x 5.75 in
Weight 1 lb
Material Polyester Film with Permanent Adhesive
Custom Pricing
Artwork Prep Fee $35 (One Time)
Production Setup Fee $50/Order
Label Price $0.40/Label

Heavy Duty ToppClip™ Hole Punch Toolkit, TCP-HD1

ToppClip Pallet Seal

Our heavy duty punch toolkit is for use with ToppClip™ pallet seal system when metal banding is used. Suitable for punching holes through mild steel up to 14 gauge (4 layers simultaneously).

Heavy duty construction for added durability. Extra die sizes provide additional use for punch. Replacement dies are not available.

Add to Cart Code: TCP-HD1

Pricing Information
Qty (Punch) $/Punch Total
1 $80 $80
Specifications
Weight 3 lbs
Die Sizes
  • 3/32 in
  • 1/8 in
  • 5/32 in
  • 3/16 in
  • 7/32 in
  • 1/4 in
  • 9/32 in

Customized ToppClips™

We can customize the ToppClip™ system to include your company name, logo, colors, serial numbers, etc.

Customized ToppClip™ System, ZTC-C

ToppClip Pallet Seal ToppClip™ Warning Label

ToppClip Pallet Seal Label on Metal Clip

Pricing Formula $250/Setup + $3.00/Seal

The parts that are customizable include:

  • Tamper evident warning label
  • Label on metal clip

Standard punch sold separately.

Please call for pricing on addtional customizations — including the adjustable plastic seal.

Typical Order Pricing
Qty (Seals) $/Seal Setup Fee Total
100 $3.00 $250 $550
200 $2.75 $250 $800
800 $2.60 $250 $2,330
2,000 $2.50 $250 $5,250
10,000 Call Call Call
Specifications
Code ZTC-C
Min Order Qty 100 Seals Sets
Artwork Prep Fee

$50 (One-Time Fee)

Applies to custom text and/or graphics on clip label and warning label

Production Set Up Fee $200/Order
